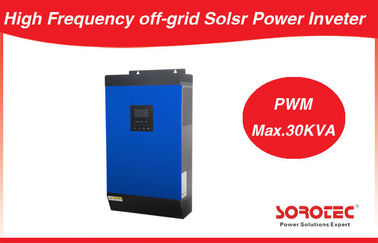

5kVA 48V Off Grid Backup solar powered inverter for 4000W Loads

Detail produk:
Place of Origin: China
Nama merek: SOROTEC /OEM
Sertifikasi: CE,ROHS,RSO9000
Model Number: SSP3118C1 1-5KVA
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1pcs
Harga: 150-300 USD Per Unit
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month

Informasi Detail

Nama Produk: Sistem Inverter Tenaga Surya Tipe: Inverter DA / AC
Kapasitas: 5kva / 4000w Faktor daya output: 0,8
Frekuensi output: 50 / 60Hz Saat output: 40A / 60A
Aplikasi: Digunakan di rumah Ukuran: 120 * 295 * 468mm
Berat badan: 10KG
Cahaya Tinggi:

solar power inverter for home

,

home power inverter

Deskripsi Produk



5kVA 48V Off Grid Backup solar powered inverter for 4000W Loads





Key Features

  • Pure sine wave inverter
  • Cold start function
  • Remote panel available
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Compatible to mains voltage or generator power
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Built-in PWM solar charge controller
  • Smart battery charger design for optimized battery performance
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Selectable input voltage range for home appliances and personal computers

5kVA 48V Off Grid Backup solar powered inverter for 4000W Loads 0





MODEL C1 1K-1250 C1 2K-2450 C1 3K-2450 C1 4K-4850 C1 5K-4850
Rated Power 1000VA / 800W 2000VA/1600W 3000VA / 2400W 4000VA / 3200W 5000VA / 4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15.5 VDC 31 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 50VDC 60VDC 105VDC
Standby Power Consumption 1 W 2 W 2W
Maxmum Solar Charge Current 50A 50A 50 A
Maximum AC Charge Current 20 A 30 A 60 A
Maximum Charge Current 50 A 50 A 110 A
PHYSICAL
Dimension, D x W x H (mm) 95 x 240 x 316 100 x 272 x 355 120 x 295 x 468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C





Full protection:

Protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.



Applications:

Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.



5kVA 48V Off Grid Backup solar powered inverter for 4000W Loads 1
